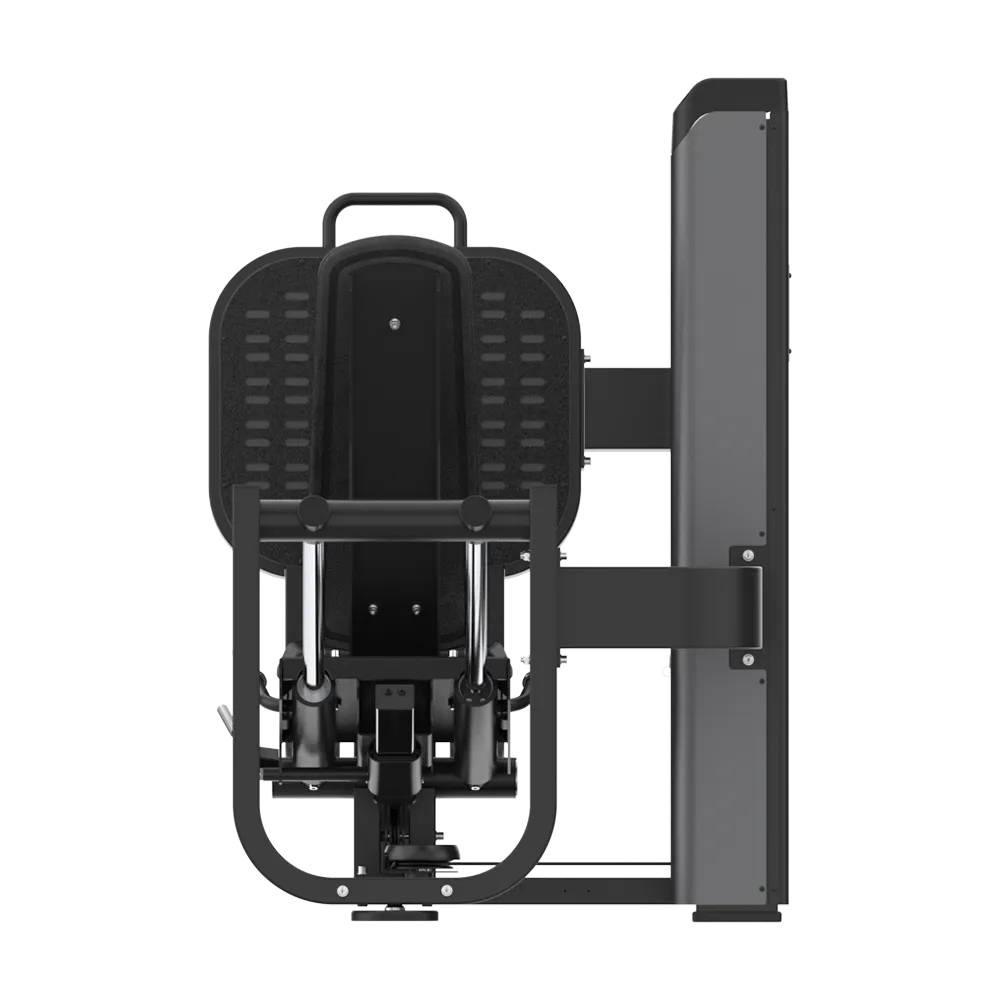

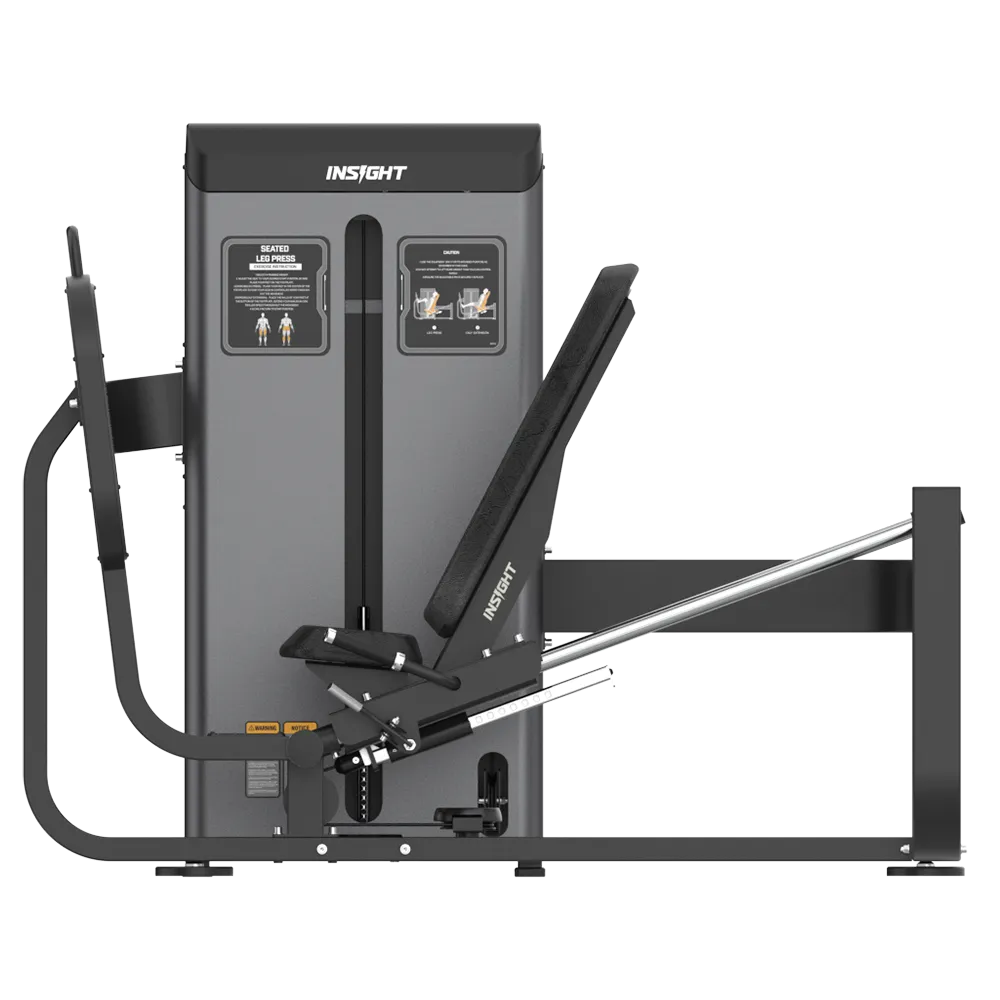

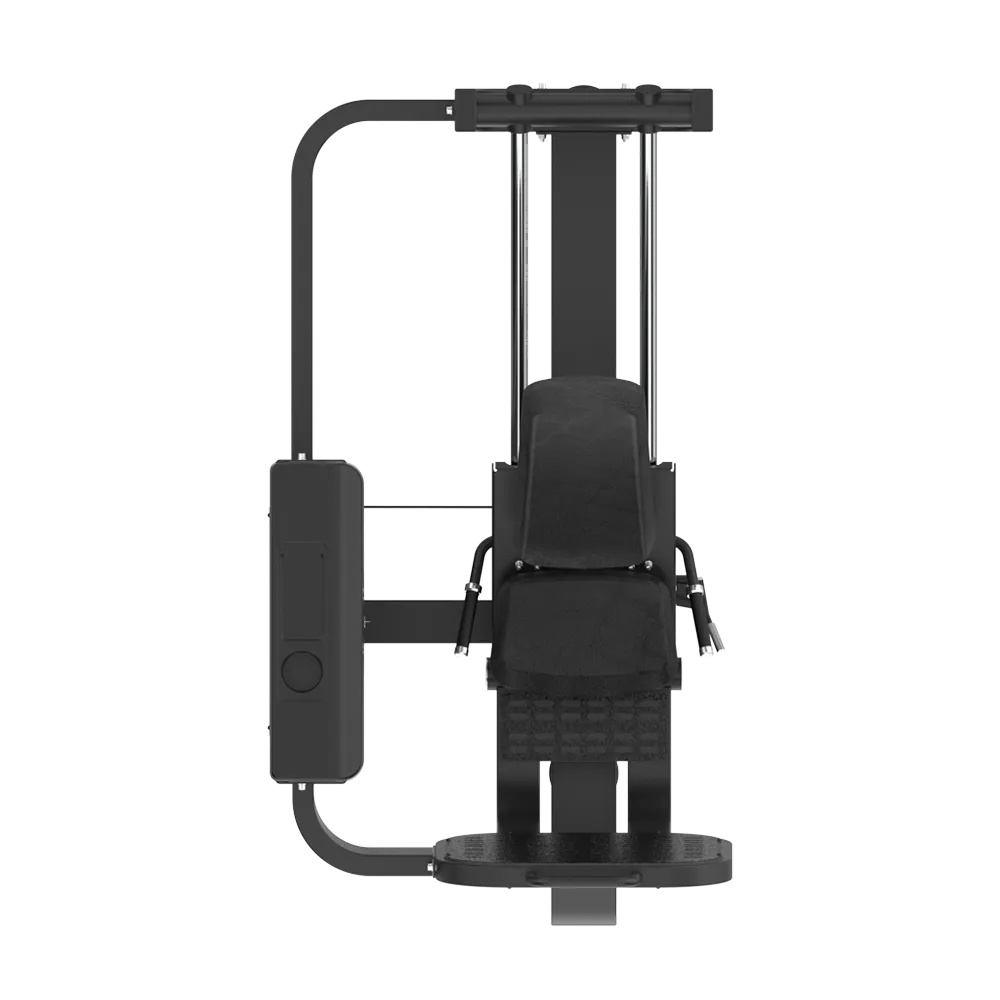

Seated Leg Press - view 1 Seated Leg Press - view 2 Seated Leg Press - view 3 Seated Leg Press - view 4 Seated Leg Press - view 5
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
A Line — A Series

Seated Leg Press

The AE8016 is a selectorized strength machine designed for comprehensive lower body muscle training, targeting the quadriceps and gluteus maximus with secondary engagement of hamstrings and adductors. A 13-position adjustable backrest accommodates various leg lengths while aligning with optimal force angles. Features an oversized ergonomic curved-edge seat, extra-wide anti-slip footplate for diverse foot placements, and dual stability auxiliary grips for torso security during heavy lifts.

Dimensions1930 × 1060 × 1529 mm
Net Weight210 kg
Weight Stack Options147.5 kg
Maximum Weight Stack147.5 kg
Maximum Body Weight150 kg
Machine Pulley Ratio1:1
Main Frame TubingJ50 × 150 × 3.0 mm
Request Quote
